Reverse Tine Brush Rakes For Excavators

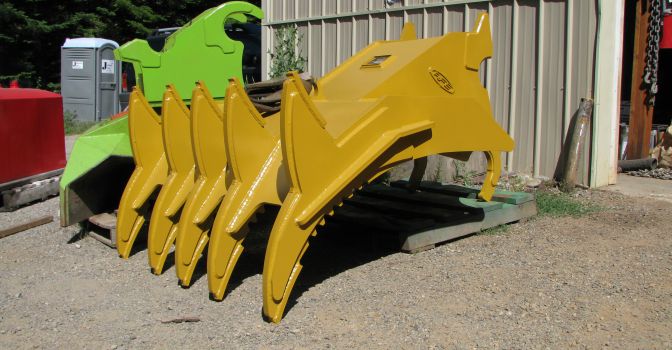

Reverse Tine Brush Rake Overview

Before you can mulch stumps, roots, and heavy brush, you need the right excavator attachment to lift the material and separate it from rocks and soil. That is where a reverse tine brush rake earns its place on the job.

Advanced Forest Equipment offers reverse-tine brush rakes for excavators, built for land clearing, debris removal, stump work, and tough site cleanup. Made for contractors by contractors, these dual-purpose rakes are designed to help operators handle roots, brush, and stubborn materials with better control, cleaner separation, and field-tested performance.

Features and Benefits of AFE Reverse Tine Brush Rake

Rake Forward or Reverse with the Proper Tines

Reverse tine brush rakes give your excavator rake more working range on the job. Standard tines help operators move brush, roots, debris, and other materials while sifting out rocks and soil. Our unique reverse tines add grip and push-back control, giving the attachment dual-purpose performance for land clearing and cleanup.

Made with Hardox® Steel

The AFE Reverse Tine Brush Rake is built with Hardox® 450, an abrasion-resistant steel manufactured by SSAB in Sweden. Known for its strength and structural performance, this material is built for heavy-duty excavators working on demanding land-clearing, brush-removal, and debris-removal projects.

Easy and Stable Attachment for Excavators

The AFE mounting system allows for easy hookup and a stable fit, helping operators keep consistent performance through tough clearing, grading, and site cleanup work.

Reverse Tine Brush Rake Specifications

Hydraulic Flow

34 to 45 GPM

Hydraulic Pressure

Up to 6,000 PSI.

Hydraulic Motors

Bent axis piston hydraulic motor (European wiith 1-year warranty); Anti-Cavitation mounted directly on the hydraulic motor ensuring better protection and cleaner hose mounting

Bearing Box

Oil bath bearing box, synthetic oil, bearings are self-aligning, heat treated 4-inch shaft, Direct Drive System with no pulleys.

Cutting Disc

Made of Weldox 700 T-1 steel (30% stronger than mild steel), 1 1/4 inch thick, 38 inches in diameter

Cutting Teeth

20) Beaver Teeth, (16) Carbide Thumbnail Teeth, (6) Carbide Bullet Teeth

Mounting

Manufactured to your mounting system; pin mount or quick coupler

Case Drain Line

Case Drain Line Required, MIN. 5/8” (Not Included)

Hoses

Requires 1” hydraulic hose rated for 5,000 PSI. (Hoses are not included)

Digging Spade Feature

RDM Series are designed with a built in digging spade feature that has replaceable teeth allowing for digging, movement of material, and aiding in movement of the excavator

Excavator Size

10 to 15 ton machines

Weight

2,100 to 2,400 lbs (Pending Mounting System)

Productivity Size

Productive up to 8 inches in diameter, depending on hydraulic flow

Disclaimer – Specifications may change at any time.

Trusted Manufacturer of Excavator Buckets & Brush Rakes

At Advanced Forest Equipment, we stand before our work in designing and manufacturing professional-grade excavator disc mulchers.

"Eco disc Mulcher is awesome, also got the heavy equipment armor door. Door had an issue but quickly resolved. Great customer service."

"Excellent product & even better customer service. I Ordered the wrong teeth for my machine, they didn’t work out and they switched them out for me at no cost."

"Good communication and very informative about all products. For me living in Canada, by the time I factor in the exchange rate and shipping costs they become cost prohibitive. A very good product though."

"The only place I will buy my Forest mulching equipment from. Excellent customer service and reasonable pricing. Thank you for everything."

Reverse Tine Brush Rake FAQs

What Jobs Are Reverse Tine Brush Rakes Best Suited For?

Reverse tine brush rakes for excavators are ideal for land clearing, right-of-way maintenance, site preparation, and debris removal projects. These excavator attachments make it easier to separate roots, brush, tree stumps, and other materials from the soil before mulching, hauling, or grading.

What Guarding Options Are Recommended with the AFE Bucket or Rake?

For top and front guarding on brush-work and debris-removal projects, we recommend Heavy Equipment Armor. Proper guarding helps protect the excavator and operator from flying debris during demanding clearing operations.

What Mulching Attachment Would You Recommend to Go with the AFE Reverse Tine Brush Rake?

We recommend pairing the AFE Reverse Tine Brush Rake with a forestry disc mulcher from our RDM Series. Built for excavators, the RDM Series is more than just a cutting disc. It uses efficient hydraulic power transfer and a reduction shroud system that forces vegetation into the fixed cutting teeth, helping increase productivity by up to 40%.

Get a Quote for AFE Reverse Tine Brush Rake

Advanced Forest Equipment builds the only brush rake with a reverse upper-tine design, giving operators a dual-purpose excavator rake for faster, cleaner land clearing. Move brush, handle debris, separate soil, and push through tough cleanup work with one hard-working attachment.

Contact us today to get a quote for an AFE Reverse Tine Brush Rake built for smarter, more efficient operations.
