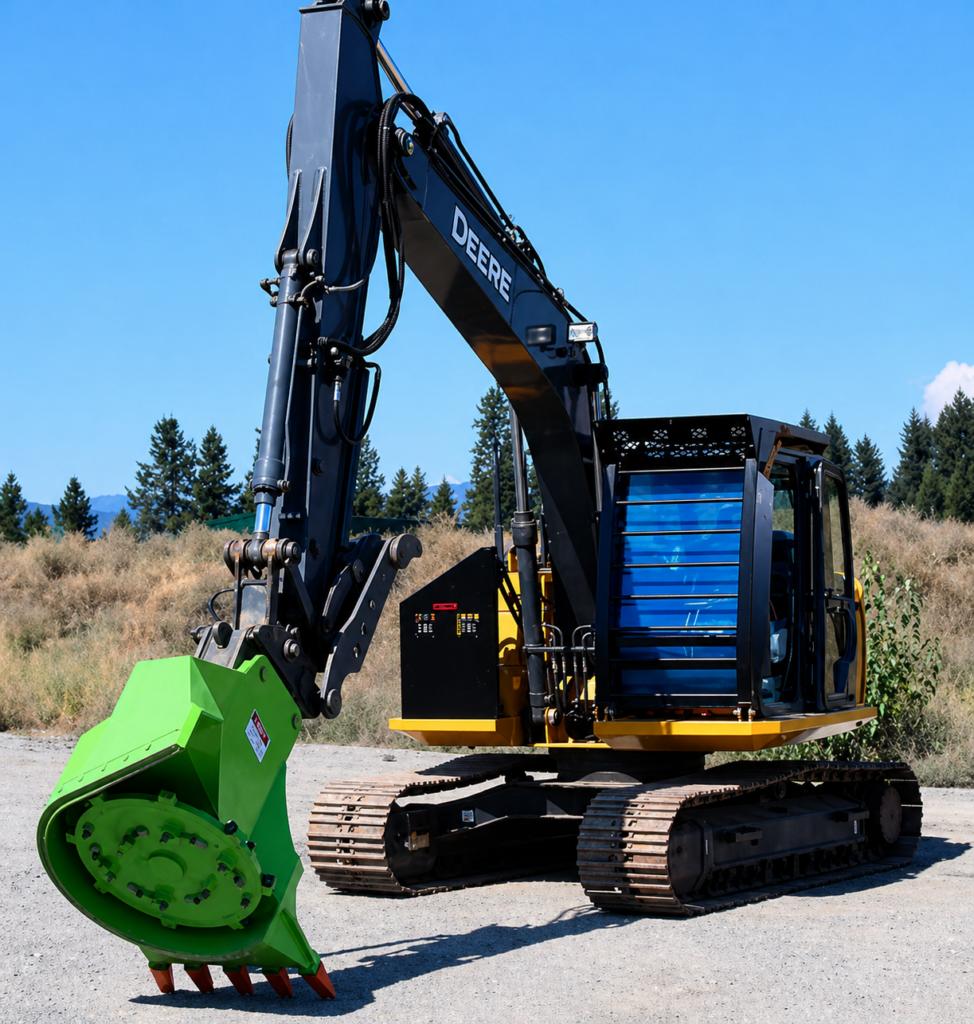

RDM38EX Excavator Forestry Disc Mulcher
RDM38EX Excavator Forestry Disc Mulcher Overview
Advanced Forest Equipment is the only manufacturer of professional-grade disc mulcher attachments for popular carriers. Throughout the world, our forestry disc mulchers are used for the following:
- Vegetation Management
- Land Clearing
- Pre-Commercial Thinning
- Fuel Reduction for Wildfire Prevention
Versatile and efficient, our forestry disc mulchers are imitated by some and duplicated by none. What’s the secret? Our design transfers maximum power through the carrier’s existing hydraulics, allowing you to load logs, pull out tree stumps, and aid in moving the excavator.
RDM Series Excavator Forestry Disc Mulchers Increase Productivity by 40%
Owners running RDM Series excavator forestry disc mulchers, including the RDM38EX excavator forestry disc mulcher, have reported productivity gains of up to 40% in the field. That means more ground cleared, less downtime, and more work finished without sacrificing performance.
Key Benefits of the RDM38EX Excavator Forestry Disc Mulcher
Built by Contractors, For Contractors
The RDM38EX excavator forestry disc mulcher is built for hard use in the field, not light-duty work. Part of the RDM Series, this forestry disc mulcher is handcrafted and field-tested to withstand demanding excavator forestry and land-clearing jobs day after day.
Enhanced Operation Visibility
This excavator disc mulcher provides the operator with a clear view of the material, helping reduce contact between the mulching disc and cutting teeth and rocks and other foreign debris.
Less Equipment, Less Hassle
The RDM38EX uses your excavator’s hydraulic system efficiently, delivering the power needed to run the disc mulcher without an additional power pack or support equipment.
Mulch Overgrown Roads With Less Effort
With proper hydraulic flow, the RDM38EX excavator can handle trees, brush, and heavy vegetation up to 8 inches in diameter. It is a hard-working forestry disc attachment built to take on serious clearing work and keep moving.
Key Features of the RDM38EX Excavator Forestry Disc Mulcher

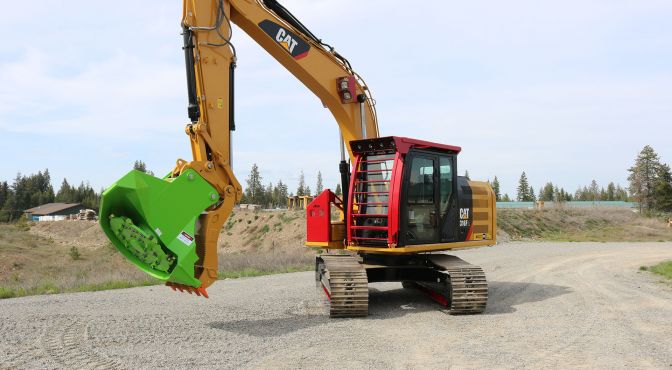

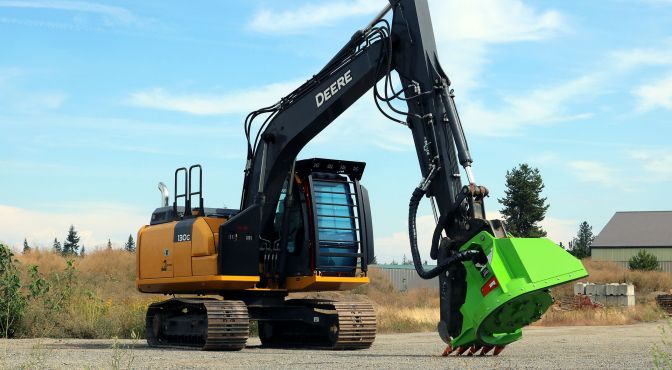

The RDM38EX excavator forestry disc mulcher is built to fit 10–15 ton excavators and work with your existing thumb attachments or quick couplers. That means less setup trouble and a better fit for the machine you already run.

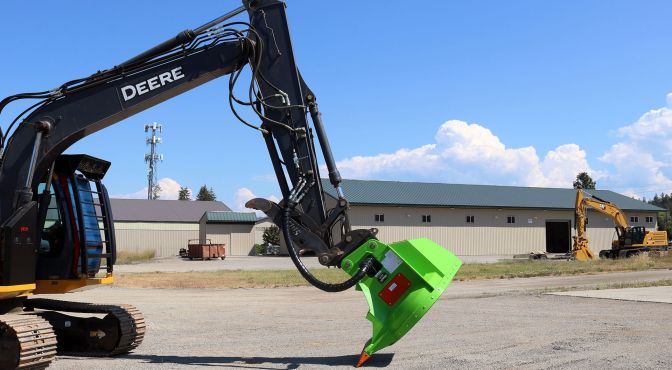

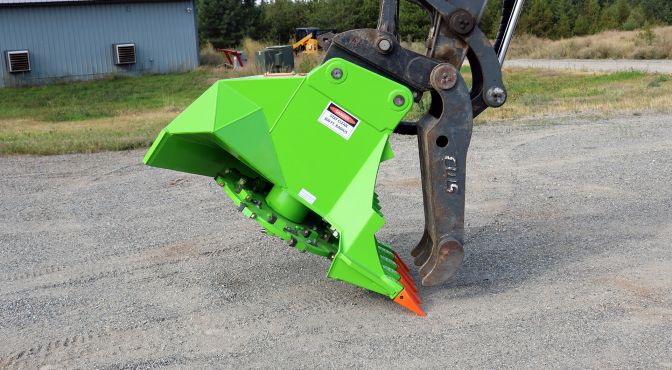

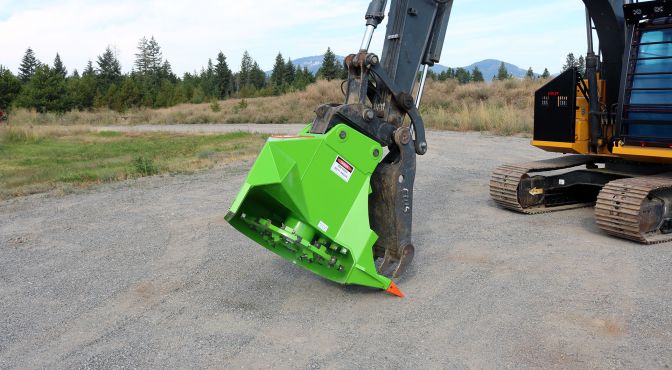

Found only on the RDM Series, the Digging Spade Feature gives operators a practical edge in the field. You can dig, clear overgrown roads, and transfer logs without switching attachments. More work gets done with less downtime.

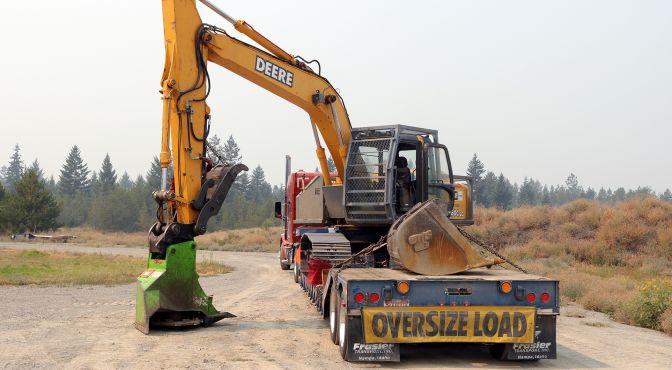

This mounting system is built for real forestry equipment work. It is strong enough to lift and reposition your excavator when needed.

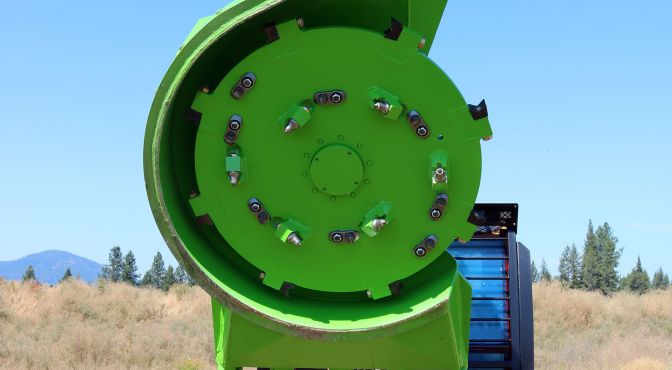

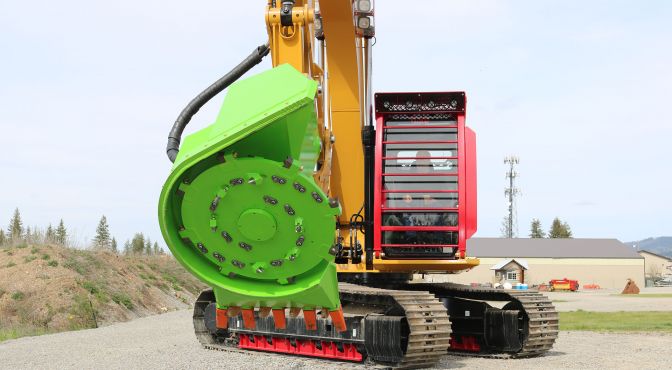

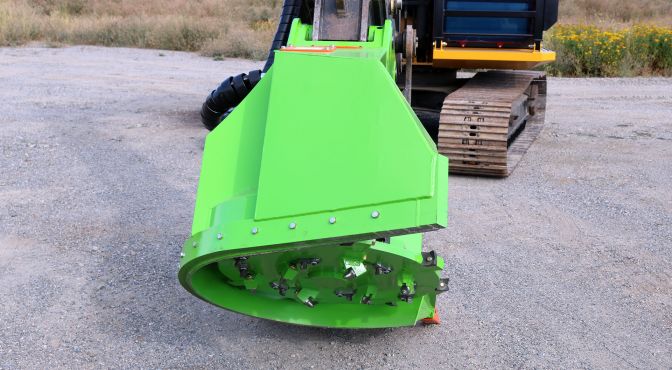

The RDM38EX features a 38-inch rotary disc mulcher with a direct-drive system and a reduction shroud that feeds trees, brush, and vegetation into the fixed cutting teeth. The result is fast, steady mulching with fewer passes and less wasted motion.
The 38-inch forestry disc is built from Weldox 700 and T-1 steel and measures 1¼ inches thick. It can go through dense brush, heavy growth, and trees up to 8 inches in diameter without clogging.
The reduction shroud vacuums vegetation into the mulching disc and cutting teeth for finer mulch, cleaner results, and more production in less time.
The RDM38EX disc mulcher uses a direct-drive system that delivers power directly to the cutting disc via a heavy-duty bearing box. Fewer complications. Stronger transfer. Reliable mulching performance where it counts.
Every AFE disc mulcher comes with a fully-tested, custom-built bearing box.
This hydraulic motor sends power from the excavator directly to the forestry disc. It delivers consistent torque and dependable cutting performance without the need for extra hydraulic systems or added support equipment.
Contractors can choose from multiple cutting tooth options, including beaver teeth, carbide thumbnail teeth, and carbide bullet teeth.
Advanced Forest Equipment has dedicated nearly 37 years to the land-clearing business to develop a product line that continually outperforms other mulcher designs under the same harsh working conditions. With an RDM44EX Excavator Forestry Disc Mulcher, you can take on the harshest work, day in and day out.
RDM38EX Excavator Forestry Disc Mulcher Specifications
34 to 45 GPM
Up to 6,000 PSI
Bent axis piston hydraulic motor (European with 1-year warranty); Anti-Cavitation mounted directly on the hydraulic motor ,ensuring better protection and cleaner hose mounting
Oil bath bearing box, synthetic oil, bearings are self-aligning, heat-treated 4-inch shaft, Direct Drive System with no pulleys.
Made of Weldox 700 T-1 steel (30% stronger than mild steel), 1 1/4 inch thick, 38 inches in diameter
(20) Beaver Teeth, (16) Carbide Thumbnail Teeth, (6) Carbide Bullet Teeth
Case Drain Line Required, MIN. 5/8” (Not Included)
Requires 1” hydraulic hose rated for 5,000 PSI. (Hoses are not included).
RDM Series is designed with a built-in digging spade feature that has replaceable teeth, allowing for digging, movement of material, and aiding in the movement of the excavator
10 to 15 ton machines
2,100 to 2,400 lbs (Pending Mounting System)
Productive up to 8 inches in diameter, depending on hydraulic flow
Disclaimer – Specifications may change at any time.
Popular Carriers

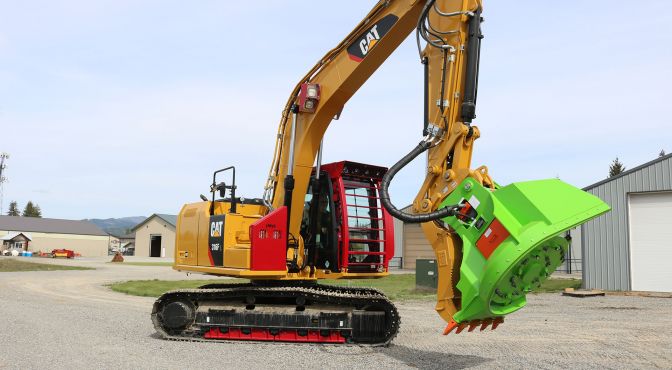

CAT 312C, CAT 312D, CAT 312E, CAT 313F, CAT 314C, CAT 314D, CAT 314E, CAT 315F, CAT 315C, CAT 315D, CAT 315E
Doosan 140

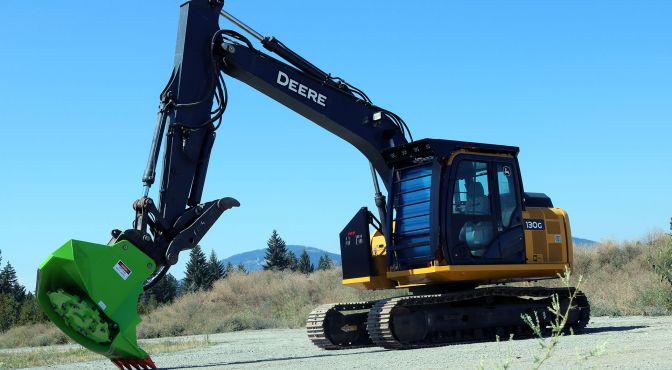

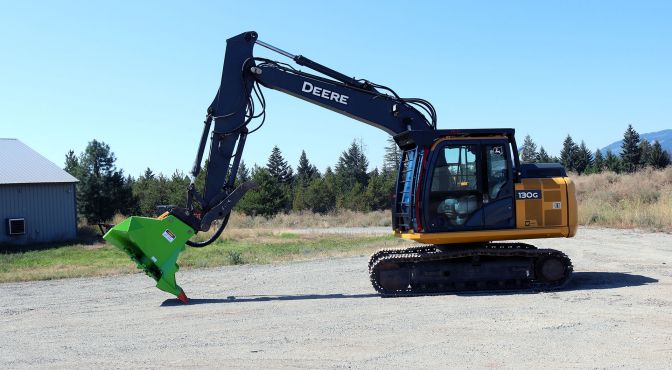

John Deere 130D, John Deere 130G
Kobelco SK140
Komatsu PC138
Requires 1” hydraulic hose rated for 5,000 PSI. (Hoses are not included)..
Volvo ERC145
RDM38EX Excavator Forestry Disc Mulcher FAQs
Is the RDM38EX Excavator Forestry Disc Mulcher Easy to Maintain?
Yes. The RDM38EX excavator forestry disc mulcher is built to keep maintenance simple and downtime to a minimum:
- No Belts, Pulleys, or Sheaves: This disc mulcher does not rely on belts, pulleys, or sheaves that can wear out, slip, or fail under hard forestry mulcher workloads.
- Oil-bathed Bearings: Oil-bathed bearings provide continuous lubrication and cooling to help the forestry disc mulcher run more smoothly, stay protected, and last longer under demanding job conditions.
- Heat-treated, Precision-ground Drive Shafts: These drive shafts are built for dependable power transfer from the excavator to the forestry disc. That means steady performance, solid durability, and fewer issues under load.
- Rubber Safety Coupler: Positioned between the hydraulic motor and bearing box, the rubber safety coupler helps protect the mulching head from damage in tough cutting conditions. It is one more feature that helps this excavator disc mulcher stay productive in the field.
What is Not Included in My RDM38EX Excavator Forestry Disc Mulcher?
The RDM38EX excavator forestry disc mulcher is sold as a complete attachment unit, built and ready for serious excavator forestry work. But, like most professional forestry equipment, a few items are not included with the base unit:
- Optional equipment upgrades
- Hydraulic hoses
- Hydraulic quick couplers
- Freight costs
- Installation or setup costs
What Front Window Protection is Recommended with the RDM38EX Excavator Forestry Disc Mulcher?
When operating the RDM38EX excavator forestry disc mulcher, proper cab protection is mandatory. Any time you are operating forestry disc mulchers or a heavy-duty mulching head, the machine needs to be equipped for the work.
We recommend using an approved polycarbonate front window when operating this excavator disc mulcher. It provides protection from flying debris during the cutting of brush, trees, and other heavy material.
If you need help choosing the right front window protection or guarding for your machine, contact Advanced Forest Equipment. We will help you match the right setup to your excavator and the kind of work you do every day.
Are There Any Safety Precautions for the RDM38EX Excavator Forestry Disc Mulcher?
When running this excavator disc mulcher, safety has to come first. The RDM38EX excavator forestry disc mulcher is built for serious clearing work, which means operators need to follow the proper precautions every time the machine is in use.
- Do Not Operate on an Open Cab Excavator: This forestry disc mulcher should never be used on an open cab machine. Proper operator protection is required for safe forestry work with excavators.
- Do Not Use a Tempered Glass Front Window: Do not run this attachment on a carrier equipped with a tempered glass front window. A properly approved polycarbonate front window is the right setup for this kind of forestry equipment.
- Keep All People at Least 300 Feet Away: Never operate the mulching disc if anyone is within 300 feet of the machine. This is critical when cutting trees, brush, shrubs, and stumps in tough field conditions.
These guidelines help protect the operator, protect the crew, and keep your disc mulcher working the way it should. When you are running high-powered forestry disc mulchers, safe operation is part of getting the job done right.
Get a Quote for the RDM38EX Excavator Forestry Disc Mulcher
Advanced Forest Equipment’s RDM Series excavator forestry disc mulchers are built contractor-tough and proven in the field. If you need forestry disc mulchers that deliver real results, the RDM38EX excavator forestry disc mulcher is designed to increase productivity by up to 40% while handling demanding land-clearing work without slowing you down.
Get a quote today and put a disc mulcher on your excavator that works as hard as you do.
