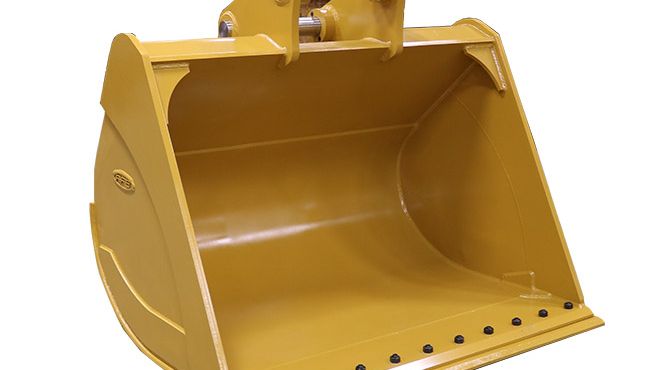

Premium Heavy Duty Bucket 1650 mm (66 in)

Denali Example
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail
  • Slideshow Thumbnail

Top Features

  • Hardox┬« steel is used in high wear areas of the bucket to increase the strength, durability and longevity of the bucket.
  • Only 5 - 7 Business Day to complete.
  • Bolt on Cutting Edge, which can be easily replaceable and when one side is dull you can easily reverse the cutting edge to use the other side.

Premium Heavy Duty Cleanout Bucket 1650 mm (66 in):

AFE’s Premium HD Cleanout 66in Bucket is more than just an add-on, it’s an extension of your machines. With over 10 years of experience rebuilding buckets, we are now excited to introduce our new Premium HD Cleanout 66in Bucket. Perfectly balanced to the excavator so you can take on heaping loads without compromising fuel efficiency or machine health. We built them to fill faster, retain your load, and fit your task. Built stronger then our competitors and turn around time is only 5 - 7 business days. Call our sales team to learn more today.

Overview:

  1. Our quick coupler/hook up mount will fit most 20 metric ton machines. Using 80mm pins / 17 1/2” pin centers / 12 7/8 pin boss spread for our dimensions.
  2. All products are made from Hardox® 450 manufactured at SSAB steel mill in Sweden. Hardox® 450 is an abrasion resistant steel with excellent structural properties.
  3. Reinforced side bottom plates designed to give extra durability in the bottom corner of the trench where it is needed the most.
  4. Bolt on Cutting Edge, which can be easily replaceable and when one side is dull you can easily reverse the cutting edge to use the other side.

Specs:

Dimensions: 67in x 54in x 56in
Main Cutting Edge PL 11/4" Hardox® 450
Side Cutting Edge PL 1.00 Hardox® 450
Inner & Outer Liners PL 3/8" thick Hardox® 450
Capcacity: 1.5 yd3
Weight: 2,614 lbs
Interface: Pin-on or Pin Grabber Coupler
Edge Type: Bolt on Cutting Edge (Replaceable and Reversible)
